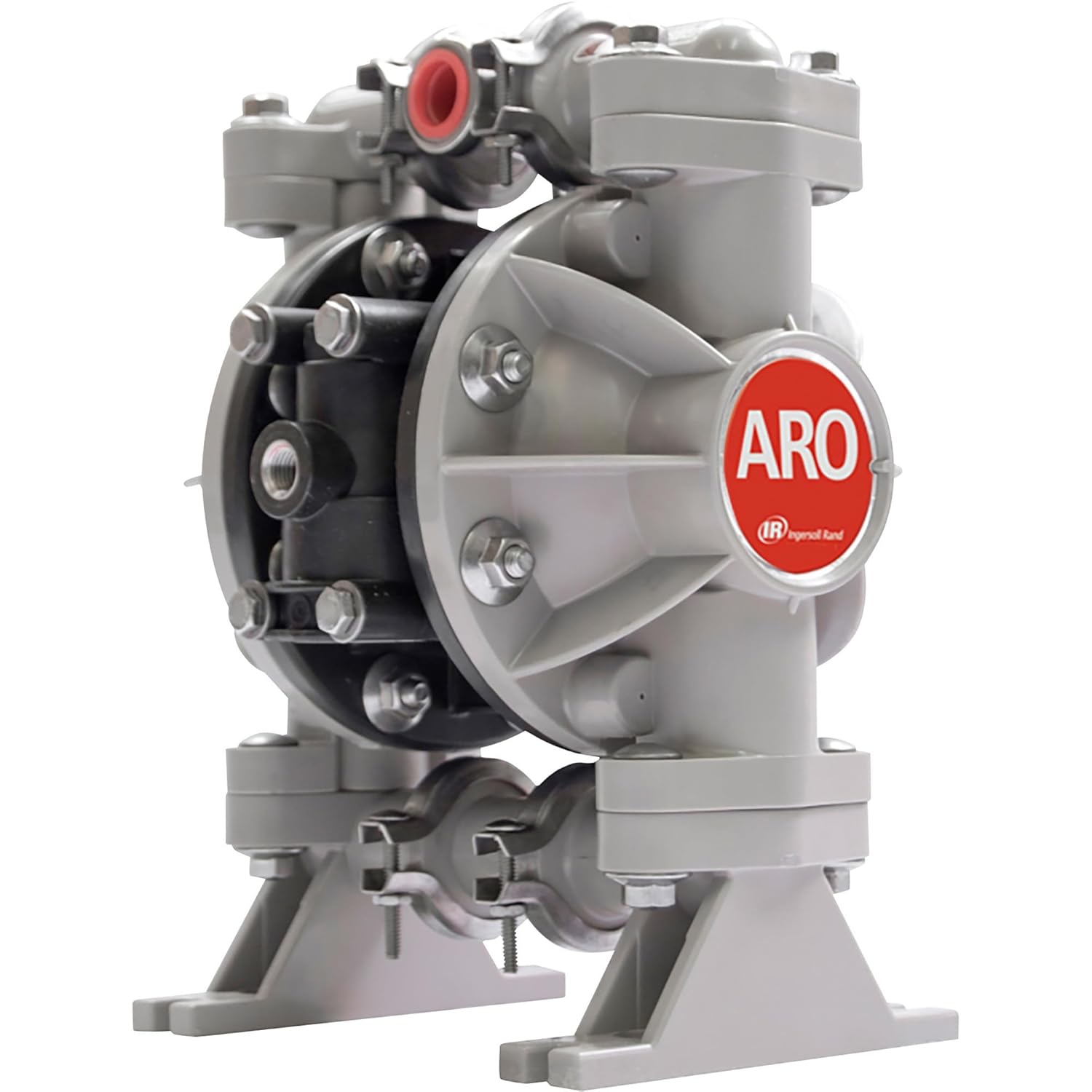

666053-344

Ratio: 1:1

Maximum Flow:

• (ball) 13 g.p.m. (49.2 l.p.m.)
• (duckbill) 10 g.p.m. (37.9 l.p.m.)

Displacement per cycle:

• (ball) 0.04 g.p.m. (0.15 l.p.m.)
• (duckbill) 0.032 g.p.m. (0.12 l.p.m.)

Air Inlet:  (Female) 1/4 - 18 N.P.T.F. - 1

Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. - 1

Max. operating pressure: 100 psi (6.9 bar)

Suspended solids max. dia.:

• (ball) 3/32” (2.4-mm)
• (duckbill) fibers

Weight:  lbs (kg)

• Polypropylene 7.2 (3.3)
• Groundable Acetal 8.8 (4.0)
• Kynar PVDF 9.5 (4.3)
• Maximum dry suction lift ft(m) : 15 (4.6)
• Sound Level: 70 PSI    60 Cycles/Min    71.1 db(A)

Muffler: Integral, Included
